For architects & specifiers

Drop the Compass-Star straight into your model.

A bespoke cast-gypsum relief panel — delivered as a SketchUp-ready 3D model with PBR textures, a DXF detail and a one-page data sheet. Specify it in minutes, not emails.

  • SketchUp (COLLADA) + OBJ + glTF, scaled to real metres
  • Three colorways — Bisque, Clay, Obsidian — with normal, roughness & displacement maps
  • DXF section detail and a print-ready PDF data sheet

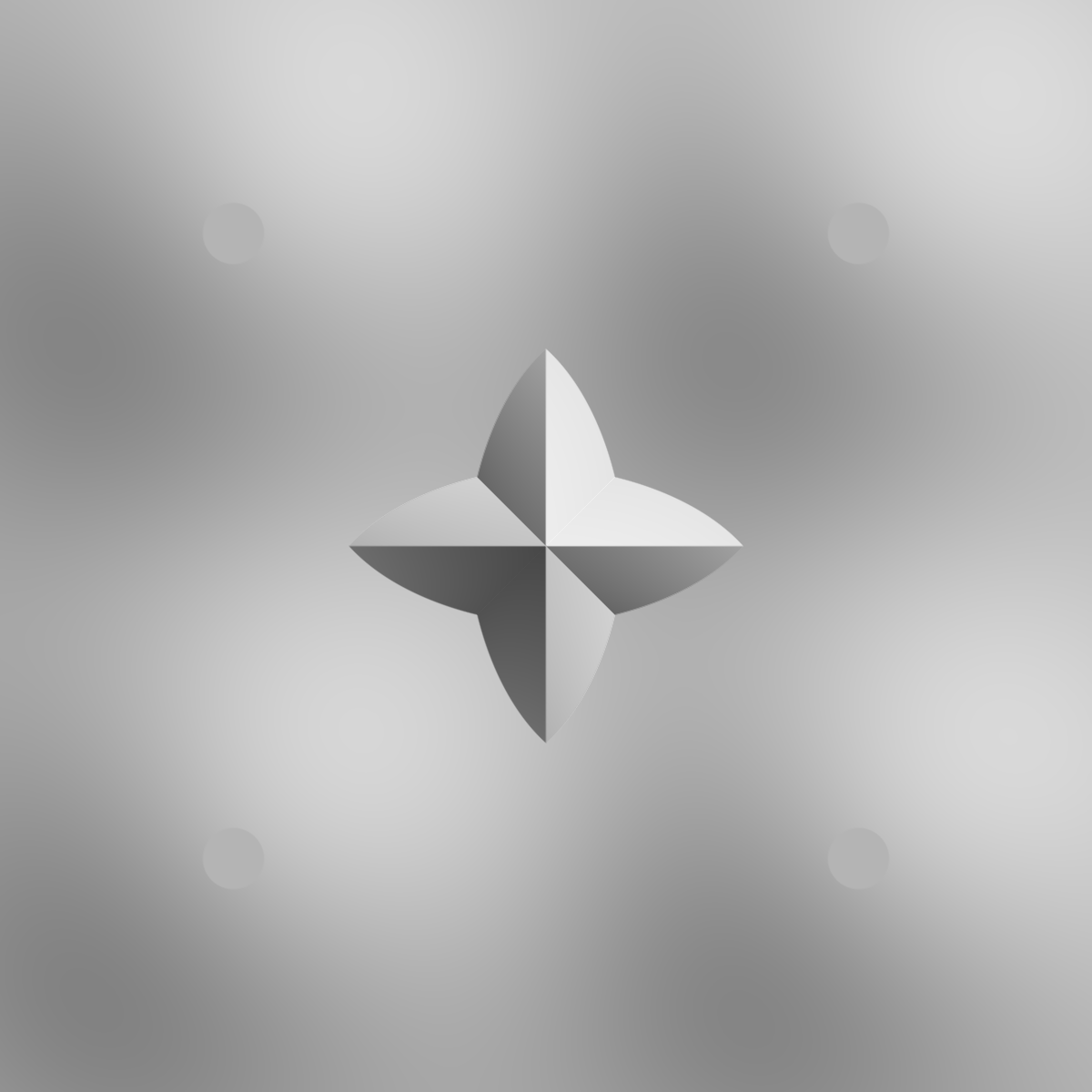

Compass-Star relief panel — four quadrant domes meeting at a raised four-point star
Compass-Star · 500 × 500 mm module · Lumina PMAG cast gypsum
Module
500 × 500 mm
Material
Lumina PMAG cast gypsum
Finish
Artisan finishes
Supply
EXW Sapanca

The download

Everything you need to draw it in.

One folder, drawing-ready. Made for SketchUp first, with neutral exchange formats so it lands cleanly in whatever you model in.

3D model

Place & render

A clean 500 mm module, scaled to real metres, ready to array edge-to-edge across a wall.

.dae — SketchUp.obj.glb
Materials

Three colorways

Bisque, Clay and Obsidian, each with normal, roughness and 16-bit displacement maps for true relief in render.

PBR texturesBisque · Clay · Obsidian
Documentation

Detail & data

A DXF section detail with depth callouts and a one-page PDF data sheet you can drop into a spec.

.dxf detailPDF data sheet

Free download

Get the Compass-Star pack.

Tell us where to credit it and it's yours. We'll only reach out if there's something genuinely useful for a project you're working on.

  • Instant download — no waiting on an email
  • Custom sizes & patterns made to order
  • Want to feel it? Request a physical sample after you download

By downloading you agree we may contact you about Studio Luminant. No lists, no spam — unsubscribe any time.

✓

Here's your pack.

Thanks — your Compass-Star pack is ready below. Download starts automatically.

  • Compass-Star — SketchUp model + textures + DXF + data sheetZIP
Download .zip → Request a physical sample
